Identifying shift drums.......

Did a search and couldn't find anything saying how to identify a shift drum. I found part numbers but MV is so bad about putting part numbers on things i couldn't find anything on the drums i have. These are currently still attached to transmissions. Which, by the way, would be nice to be able to find out if the trans are oem gears or close ratio.

If anyone can help me get this figured out that'd be great.
varium is offline
Sponsored Links
Advertisement

post #2 of 8 (permalink) Old 07-27-2011, 06:54 PM
Moderator

Donsy's Avatar

Join Date: Aug 2008
Location: Australia
Posts: 22,055
New Site Garage
Exclamation

Maybe adding pictures would help ?

Dons Nel
Own - Two F4 1000R's 06 and 07.
PayPal :
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

eMial:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Mobile in Australia: 0438 385 776
Website with MV Manuals for Most models -
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Donsy is offline
post #3 of 8 (permalink) Old 07-27-2011, 07:11 PM
Senior Member

theknurl's Avatar

Join Date: Jul 2009
Location: Palos Verdes Est, SoCal, USA
Posts: 13,974
Send a message via Skype™ to theknurl
Thumbs up which is what?

varium, here you go:

the stock transmission 1st gear is 38X13 or 2.923:1
the CR transmission 1st gear is 37X14 or 2.642:1

so just count the teeth on 1st gear, the ones farthest to the right

see the button head rivet in the drum?

if the closest groove is a straight section its normal pattern

if the closest groove ends at the rivet its a reverse pattern drum

this is in neutral, simple right?



Noel-theknurl

The Forum Curmudgeon
I'm not PC either
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

'08 910R
'05 F4
ph. 310-414-7247 PST, GMT -8
PayPal;
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Skype; theknurl
theknurl is online now
Sponsored Links
Advertisement

post #4 of 8 (permalink) Old 07-28-2011, 11:58 AM Thread Starter
Senior Member

Join Date: Dec 2006
Posts: 819

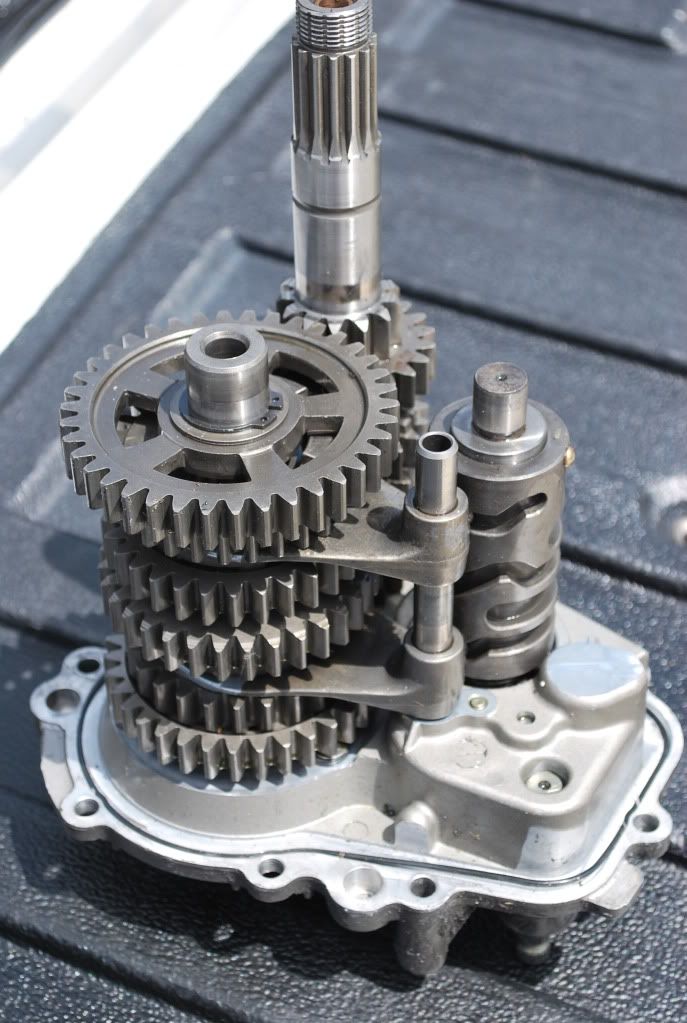

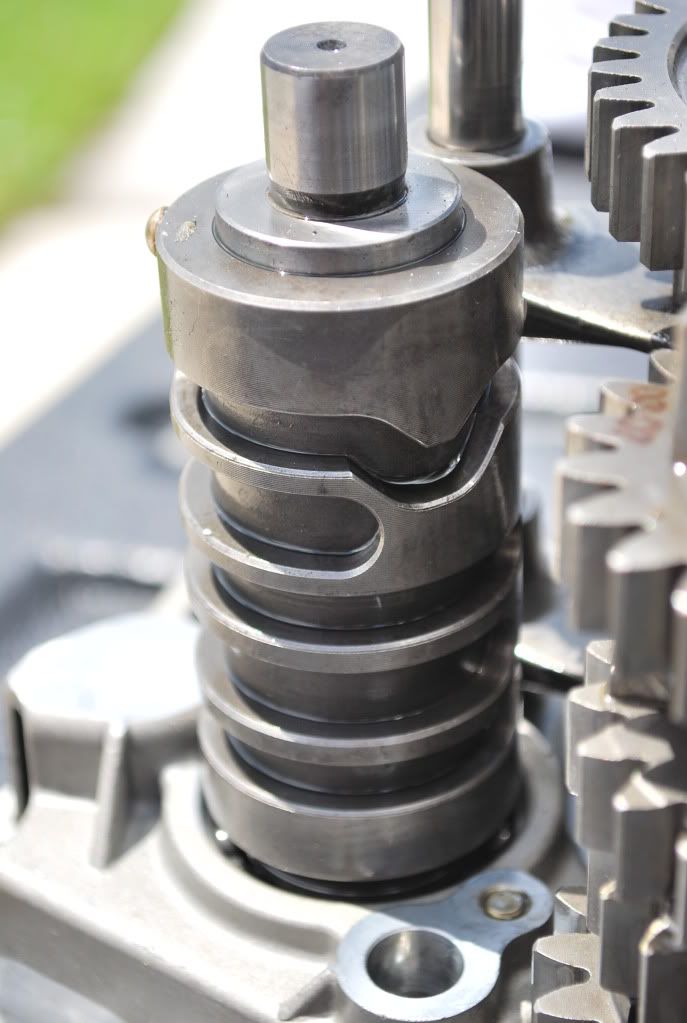

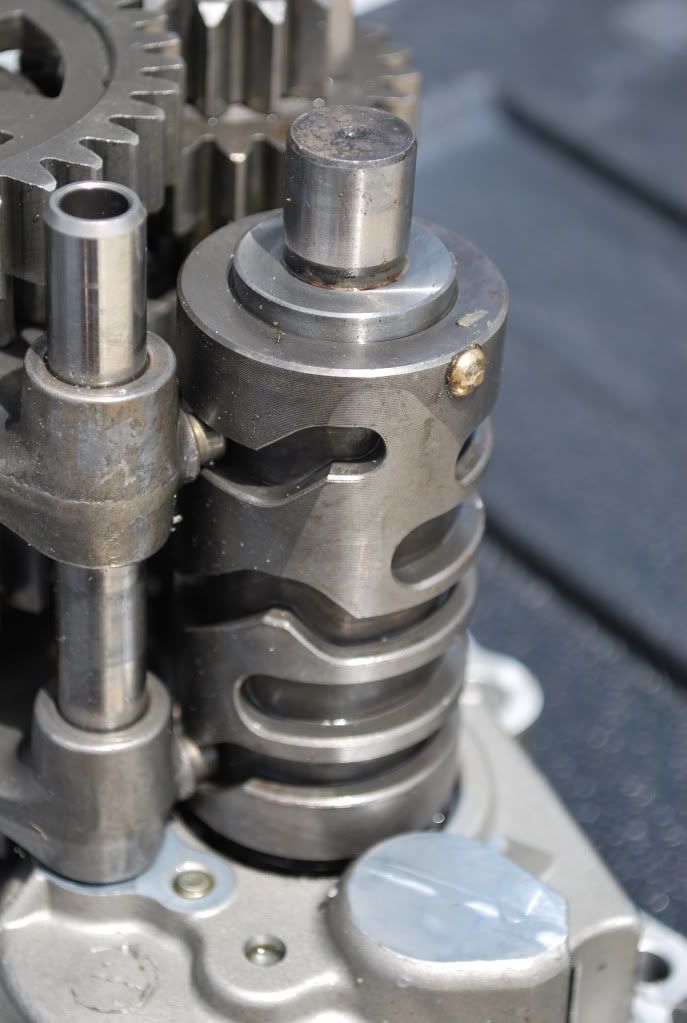

Had to wait for the rain to pass to get some decent pics. Below is on of the shift drums from both sides.



varium is offline
post #5 of 8 (permalink) Old 07-28-2011, 12:00 PM Thread Starter
Senior Member

Join Date: Dec 2006
Posts: 819
knurl: You are speaking of the gear on the top in this pic, right? The one furthest away from the mounting plate.


varium is offline
post #6 of 8 (permalink) Old 07-28-2011, 12:02 PM
Moderator

Donsy's Avatar

Join Date: Aug 2008
Location: Australia
Posts: 22,055
New Site Garage
Question

Come on Noel, I'm waiting . No really, I want to know too.

Dons Nel
Own - Two F4 1000R's 06 and 07.
PayPal :
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

eMial:
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Mobile in Australia: 0438 385 776
Website with MV Manuals for Most models -
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Donsy is offline
post #7 of 8 (permalink) Old 07-28-2011, 01:25 PM
Senior Member

theknurl's Avatar

Join Date: Jul 2009
Location: Palos Verdes Est, SoCal, USA
Posts: 13,974
Send a message via Skype™ to theknurl
?

varium, yes farthest from the plate or or the right side of the bike

thats a reverse pattern drum on a stock ratio transmission (if i counted 38 teeth correctly)


Noel-theknurl

The Forum Curmudgeon
I'm not PC either
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

'08 910R
'05 F4
ph. 310-414-7247 PST, GMT -8
PayPal;
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Skype; theknurl
theknurl is online now
post #8 of 8 (permalink) Old 07-29-2011, 01:27 PM Thread Starter
Senior Member

Join Date: Dec 2006
Posts: 819
Thanks for the confirmation. Looks like i have 2 reverse shift drums on standard tranny sets.
